Migas Touch Pickups

SRV Number One #1 Tribute Stratocaster Pickups Set Lacquer Potted

SRV Number One #1 Tribute Stratocaster Pickups Set Lacquer Potted

Regular price $149.00 USD
Regular price Sale price $149.00 USD
Sale Sold out
Color
Pickup position
Handedness
Lacquer vs Wax Potting:
Both are used to seal the wire to avoid microphonic noises and squeals.

Wax potting takes 10 to 15 minutes to allow the wax to completely penetrate the pickup. This eliminates all microphonic noise and squeals.

Lacquer potting is a quick dip to seal the outside of the pickup wires and does not penetrate completely.  This does eliminates most of the microphonic noise and squeals while allowing the wire to remain free inside for a more high-end airy lively tone



Stevie Ray Vaughan's pickups were examined by Fender and they commented that the "neck pickup was hottest, the other two relatively weak, and all bobbins were copper foil shielded." This is consistent with what pickups in '59 were. Most of them had the neck as the hottest pickup. Copper foil wrapping and grounding acts as a "shorted turn" which basically clips off some treble. These pickups made with heavy formvar wire which can be on the squeaky clean/bright side, so this method helps to mellow them down a bit.

I did the research when reproducing these pickups. I use period correct USA made components. Vulcanized fiber flat work. Alnico V Magnets that are aged and hand beveled with the same stagger as used by Fender for the Stratocasters in 1959. I hand-wind each pickup meticulously using scatter winding and under winding them to stay true to Stevie's lower output. Copper foil wrapping and grounding which acts as a shorter turn which clips off some treble. Everything about these pickups is as correct as can be and replicate the pickups in The famous Number One Strat. Stevie would keep these pickups low, close to the pickguard, and had a high action using heavier strings. With a low gain amp and cranking it up in combination with these pickups is how Stevie pulled the amazing tones from his guitar. These are the real deal and I did not use other methods to try and replicate his sound like many others do but instead used the same components to come as close as possible to match the pickups he used.

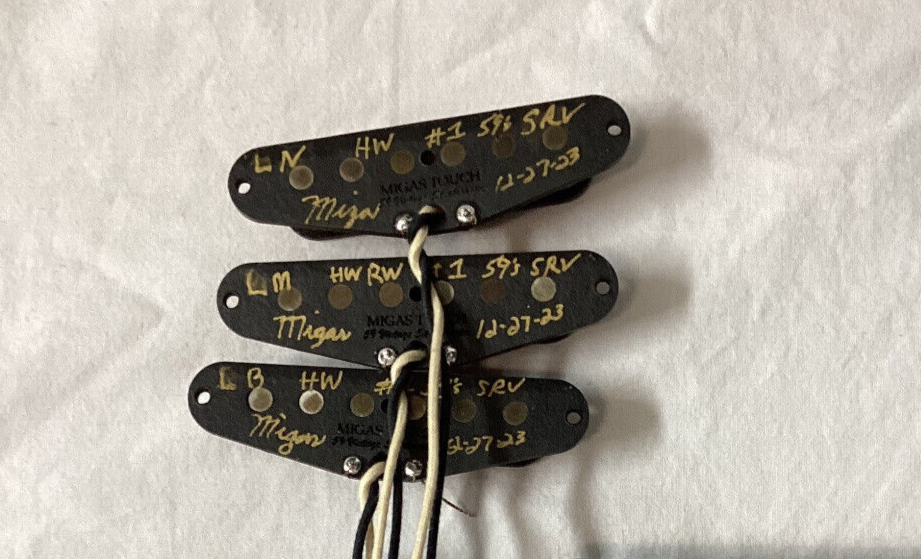

We lacquer seal all of our bobbins for durability then fully wax pot them to avoid microphonic noises and squeals. All of our pickups are handwound and scatterwound. We have spent a great amount of time testing wires, magnets, and bobbins from various sources to product the best quality pickup that we can. Each of our hand-wound sets are signed and dated. 100% made in the USA..

  • Heavy Formvar 42 wire
  •  Neck, Middle and Bridge all Shielded
  •  Middle Pickup is Reverse Wound for Hum Canceling
  • Period correct staggered pole pieces with aged finish
  • Alnico 5 magnets
  • Average read outs: Neck 5.9, Middle 5.5, Bridge 5.5 but each may vary slightly
  • Period correct cloth push back wire
  • Black fiber bobbins
  • Lacquer potted

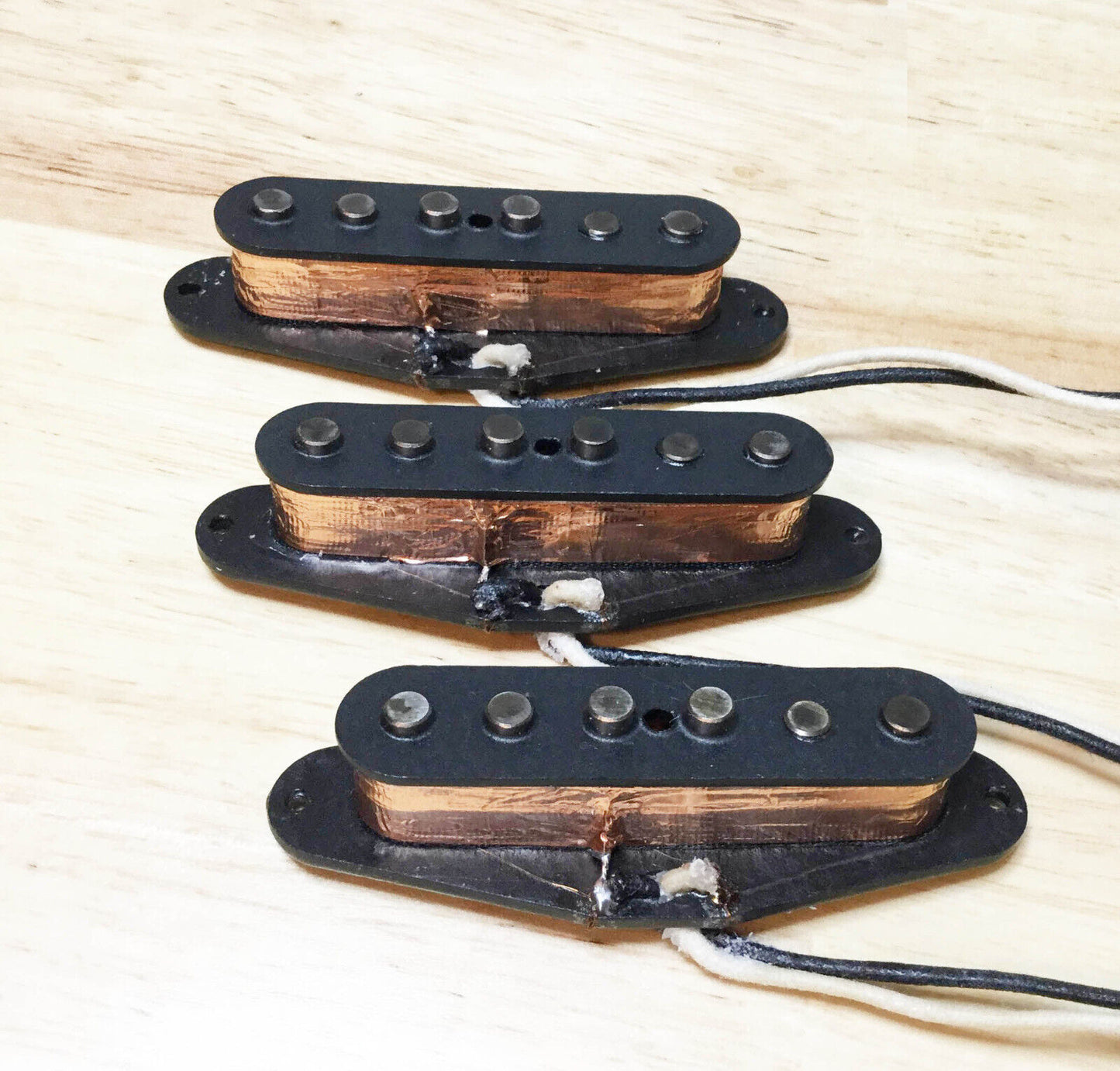

  • Copper foil wrapping and grounding
  • Installation hardware included


Thanks for your Support
