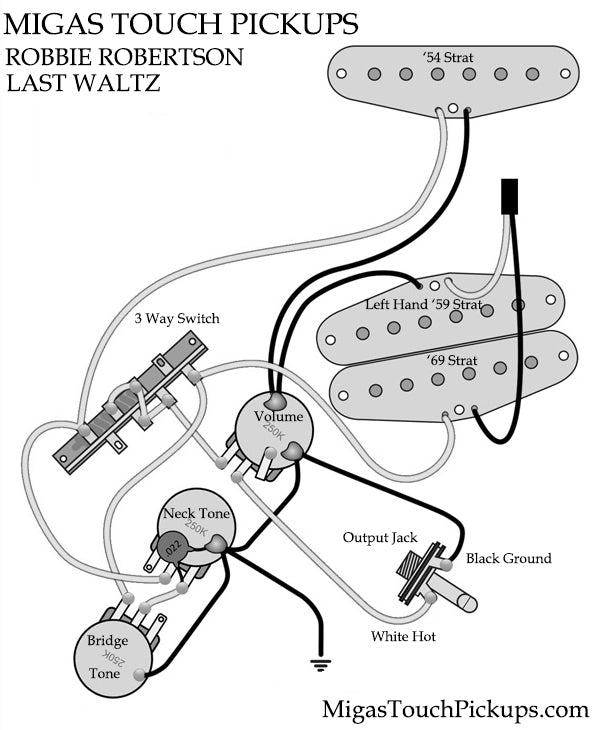

Robbie Robertson Wiring Diagram It took me months to get his wiring the way it was in the Last Waltz guitar and now you can build your own. You can use any single coil pickups but Robbie's had a 54 in the neck, a left handed 59 reverse wound flipped upside down in the middle and a 69 in the bridge. By flipping the middle pickup upside down you are able to butt them up against each other. Migas Touch Pickups website has the loaded pickguard or just the empty pickguard for you to make your own version. It is available in White or Black and in 8 or 11 Hole. You will probably need to route out you body for this configuration.
